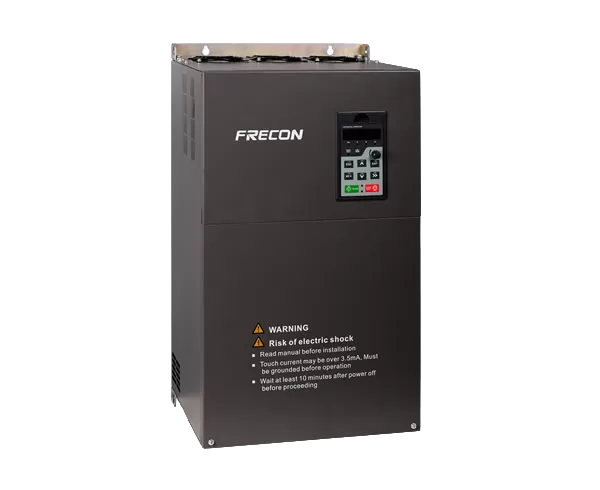

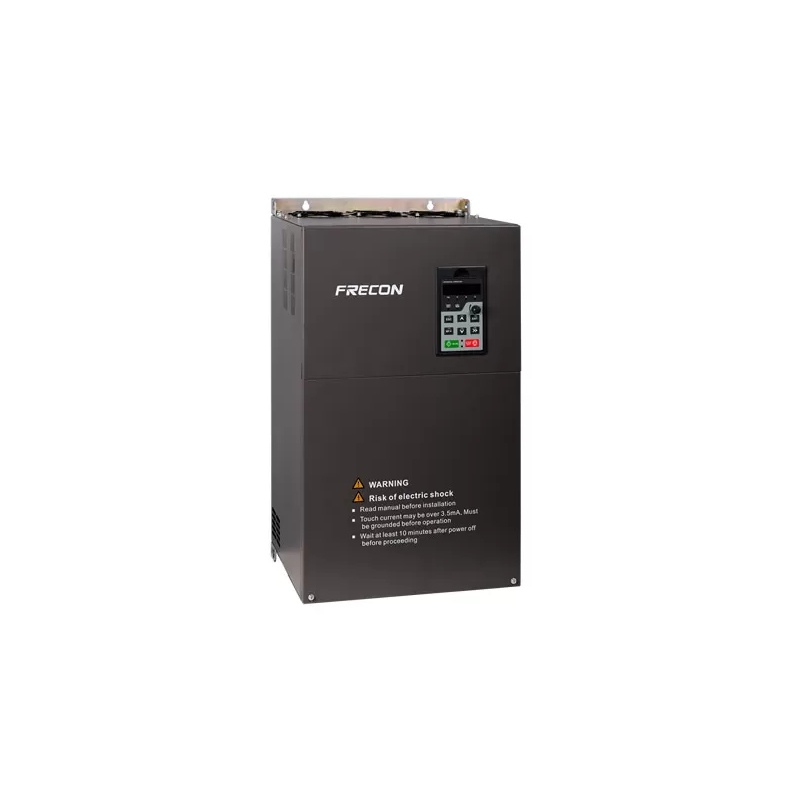

FR600
500V and 690V Variable Speed Drives
Three Phase 525V 1.5～630kW
Three Phase 690V 15 ～710kW
FR600 Series can be customized designed for industry solutions.
High Performance SVC Control Mode
- Speed Control Accuracy: ±0.5%
- Speed Control Range: 1:100
- Torque Control Response time: < 200ms
- Starting Torque: 180% Rated Torque/0.5Hz
Master-Slave Control
- Power balance for multi-motors to extend life of motor
- Alternating duty cycle pump software up to 8 pumps
Autotuning Function
- Rotary Autotuning
- Static Autotuning
Multi-Protection
- More than 20 kinds of protections: Motor protection, Over Current Protection, Over Voltage Protection, Over Temperature Protection, etc.
Multi I/O Interface
- 7 channels programmable digital input, one of them support high speed pulse input
- 3 channels analog input, two of them support 0~10V or 0~20mA choice, one of them support -10V~+10V
- 2 channels programmable relay output
- 2 channels programmable collector output
- 2 channels programmable analog output
- 1 channel support MODBUS-RTU standard RS-485 interface
- 1 channel 24V power, max output current 200mA
- 1 channel 10V power, max output 10MA
